Your ViewSonic ViewBoard includes a variety of controls, tools, and menu icons. Refer to the information below to learn about their functions and how to use them.
ViewBoard Buttons and Tools:

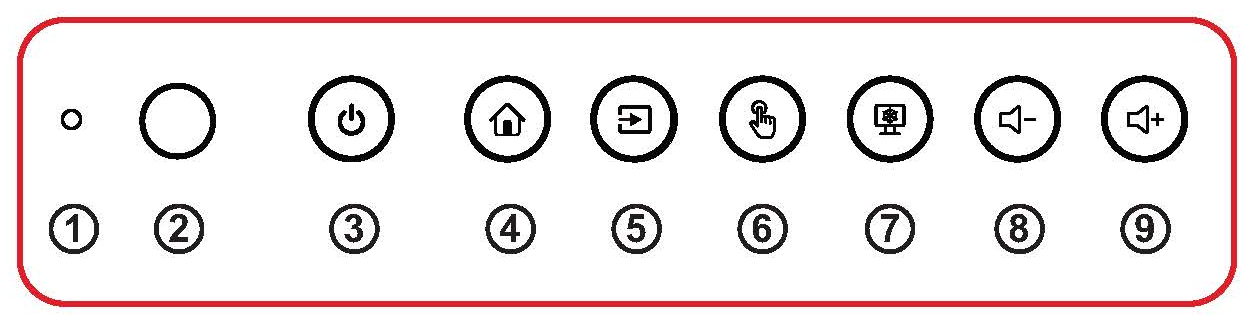

Control Panel
1. IR Receiver: The IR (Infrared) Receiver is the small sensor on the front of the ViewSonic ViewBoard that receives signals from the remote control. To ensure the remote works properly, make sure the IR receiver on both the ViewBoard and the remote control is not covered or blocked. For best performance, use the remote within 26 feet of the ViewBoard and point it toward the display at an angle of no more than 30 degrees to the left or right. This helps ensure commands are received reliably without interruption.
2. Ambient Light Sensor: The Ambient Light Sensor automatically adjusts the screen brightness based on the lighting in your classroom. This helps keep the display easy to see in bright rooms and reduces eye strain in darker environments. The sensor will continually adjust the brightness for optimal viewing.
3. Power: Press the Power button to turn the ViewBoard display on or off.
4. Home: Press the Home button at any time to return to the ViewBoard Home screen, where you can access apps, settings, and other ViewBoard tools.
5. Input Source: Press the Input Source button to open the list of available input sources and switch between connected devices, such as a desktop computer, laptop, document camera, or other display inputs.
6. Touch: Press the Touch button to turn the touchscreen feature on or off.
7. Freeze: Press the Freeze button to temporarily lock the current image on the screen, preventing any changes until the feature is turned off.
8. Volume Down: Press the Volume Down button to lower the audio volume.
9. Volume Up: Press the Volume Up button to increase the audio volume.

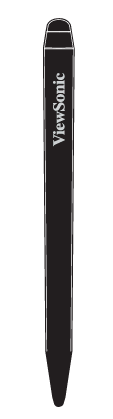

Interactive Pen
The ViewStylus allows educators to write, draw, and interact with content on the ViewBoard with greater precision. It provides a natural writing experience and is ideal for annotating lessons, taking notes, and collaborating during classroom activities.
Remote Control
The appearance of the remote control may vary by Promethean Board model; however, the button icons remain consistent across all models.
1. Power: Press the Power button to turn the ViewBoard display on or off.
2. Screenshot: Press the Screenshot button to capture and save an image of the current screen display.
3. Home: Press the Home button at any time to return to the ViewBoard Home screen, where you can access apps, settings, and other ViewBoard tools.
4. OK: Press the OK button to select an option, open a menu item, or confirm your choice when navigating the ViewBoard's menus and settings.
5. Return: Press the Return button to go back to the previous screen or menu.
6. Volume: Use the Volume buttons to adjust the volume level.
7. Keyboard: Press the Keyboard button to open a numeric keypad for entering numbers and making selections.
8. Information: Press the Information button to view details about the ViewBoard, including device and system information.
9. Input Source: Press the Input Source button to open the list of available input sources and switch between connected devices, such as a desktop computer, laptop, document camera, or other display inputs.
10. Media Control: Use the Media Control buttons to manage audio and video playback. The Red button plays or pauses media, the Green button stops playback, the Yellow button fast-forwards or skips ahead, and the Blue button rewinds or returns to previous content.
11. Settings: Press the Settings button to open the ViewBoard settings menu, where you can adjust display, audio, network, and other device settings.
12. Navigation: Use the Navigation arrows to move through menus, select options, and adjust settings within the ViewBoard interface.
13. Freeze: Press the Freeze button to temporarily lock the current image on the screen, preventing any changes until the feature is turned off.
14. Mute: Press the Mute button to quickly turn the sound off. Press it again to restore the audio.
15. Brightness: Use the Brightness arrows to adjust the brightness level.
16. Blank: Press the Blank button to temporarily hide the content displayed on the screen. Press it again to return to your presentation or lesson.
17. Aspect Ratio: Press the Aspect Ratio button to adjust how content is displayed on the screen, helping ensure images and presentations appear in the correct size and proportions.
ViewBoard Menu:

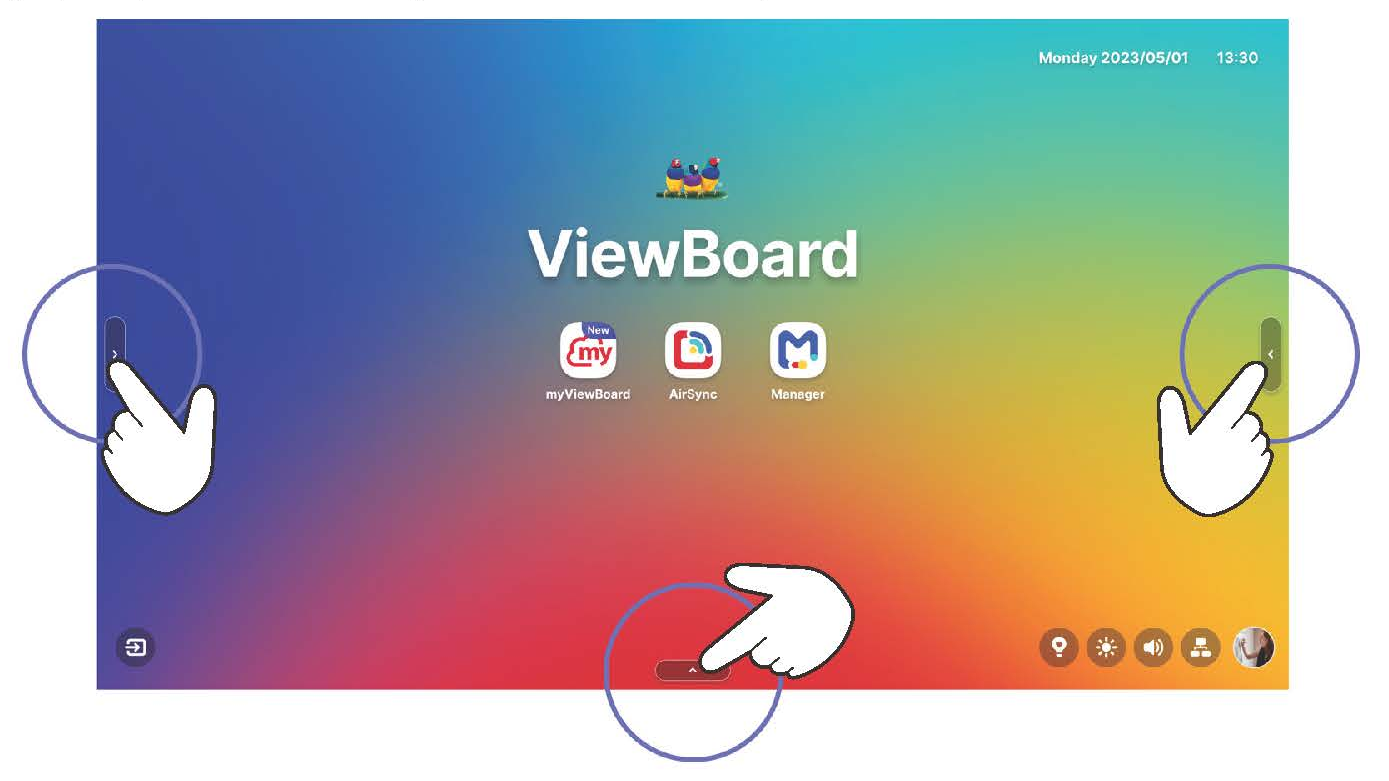

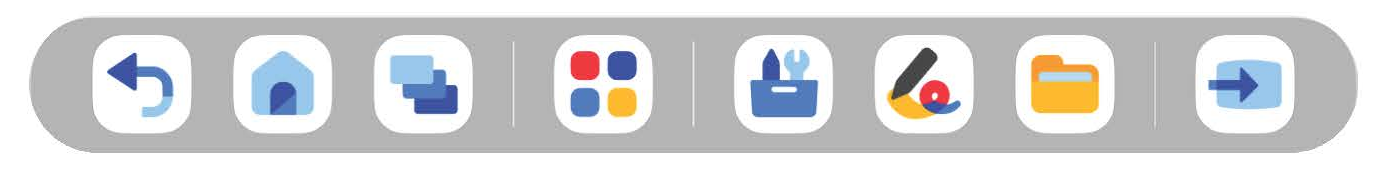

Toolbar
The Toolbar provides quick access to the ViewBoard's apps, tools, and features. It can be opened from the icons located along the left, right, and bottom edges of the screen, allowing you to quickly access commonly used functions from anywhere on the ViewBoard.

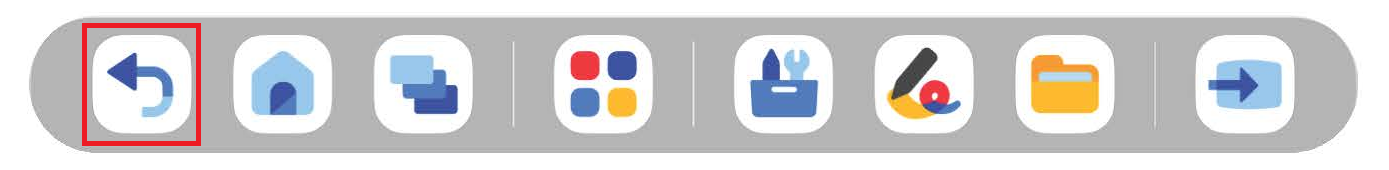

Return Icon
Press the Return icon to go back to the previous screen or menu.

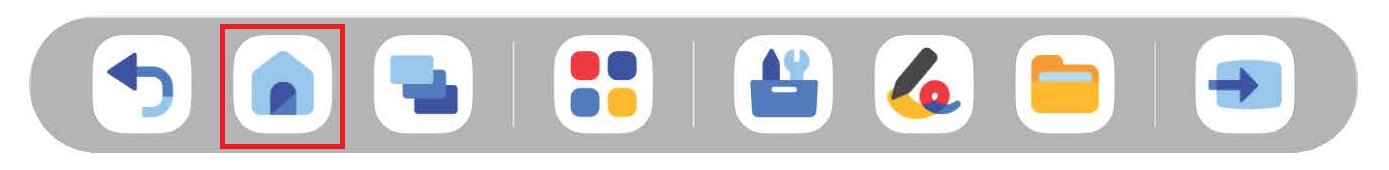

Home Icon
Press the Home icon at any time to return to the ViewBoard Home screen, where you can access apps, settings, and other ViewBoard tools.

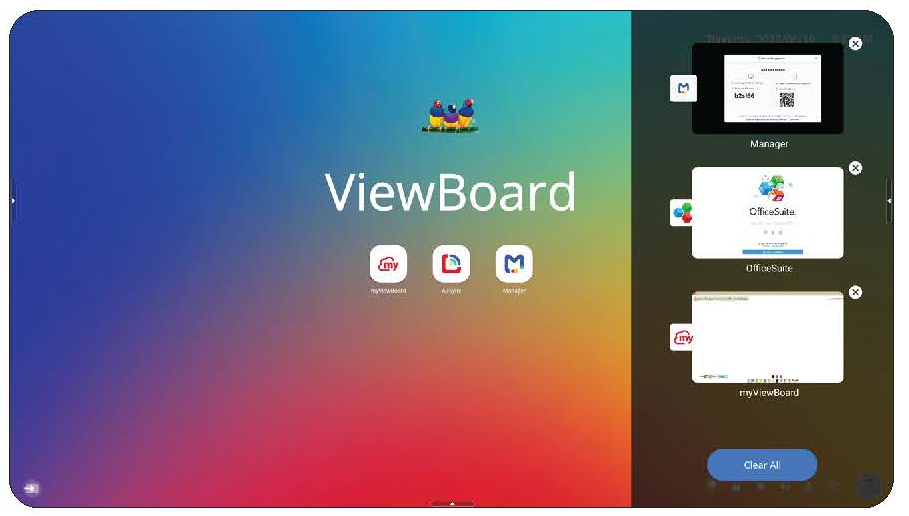

Recent Icon
Press the Recent icon to view and switch between applications that are currently open on the ViewBoard.
Please Note: Selecting the X next to an open application will close that app.

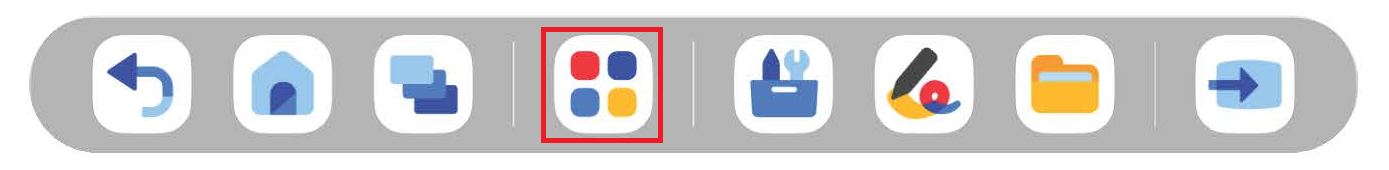

Applications Icon
Press the Applications icon to view and launch all apps installed on the ViewBoard.

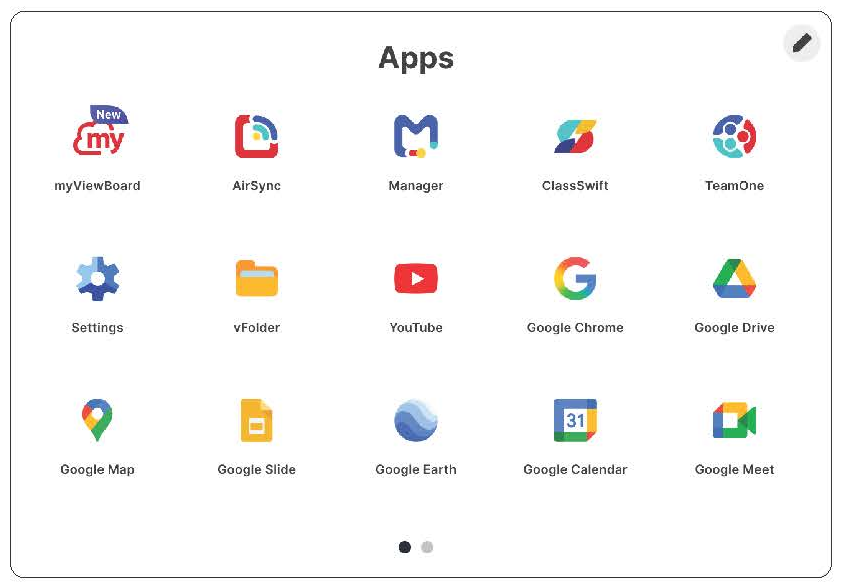

Please Note: This screenshot is an example of the Apps menu. SAU #19 will be provisioned to support the OneDrive integration; therefore, the Google Icons will be replaced with Microsoft Icons.

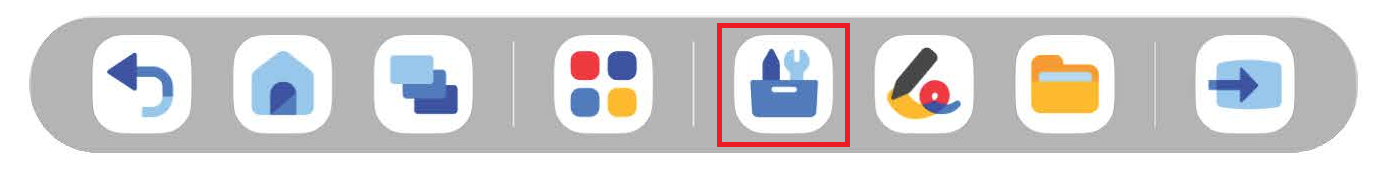

Tools Icon
Press the Tools icon to quickly access and adjust commonly used ViewBoard tools and settings.

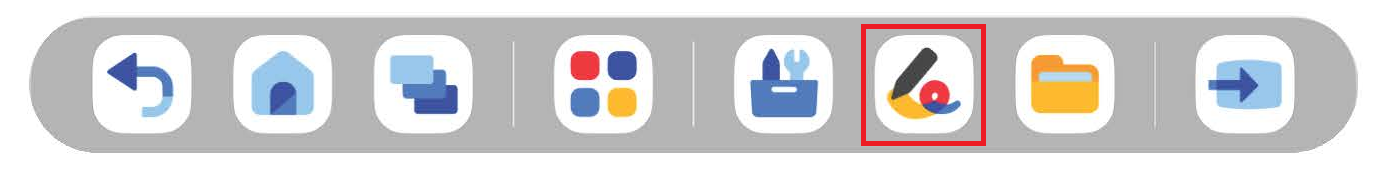

Annotation Icon
Press the Annotation icon to access annotation tools for writing, drawing, highlighting, and adding notes directly on the screen.

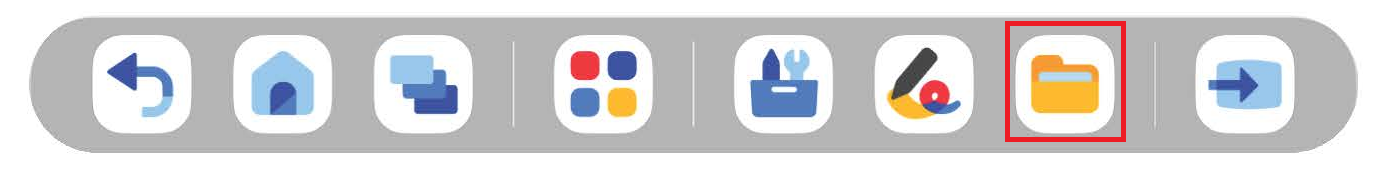

vFolder Icon
Press the vFolder icon to browse, open, and manage files stored on the ViewBoard or in your connected cloud storage, such as OneDrive (when signed in).

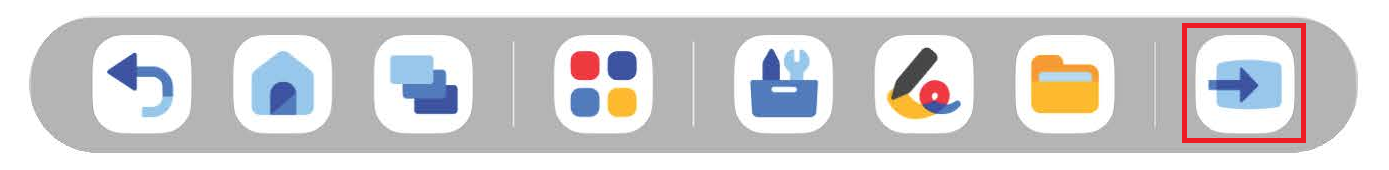

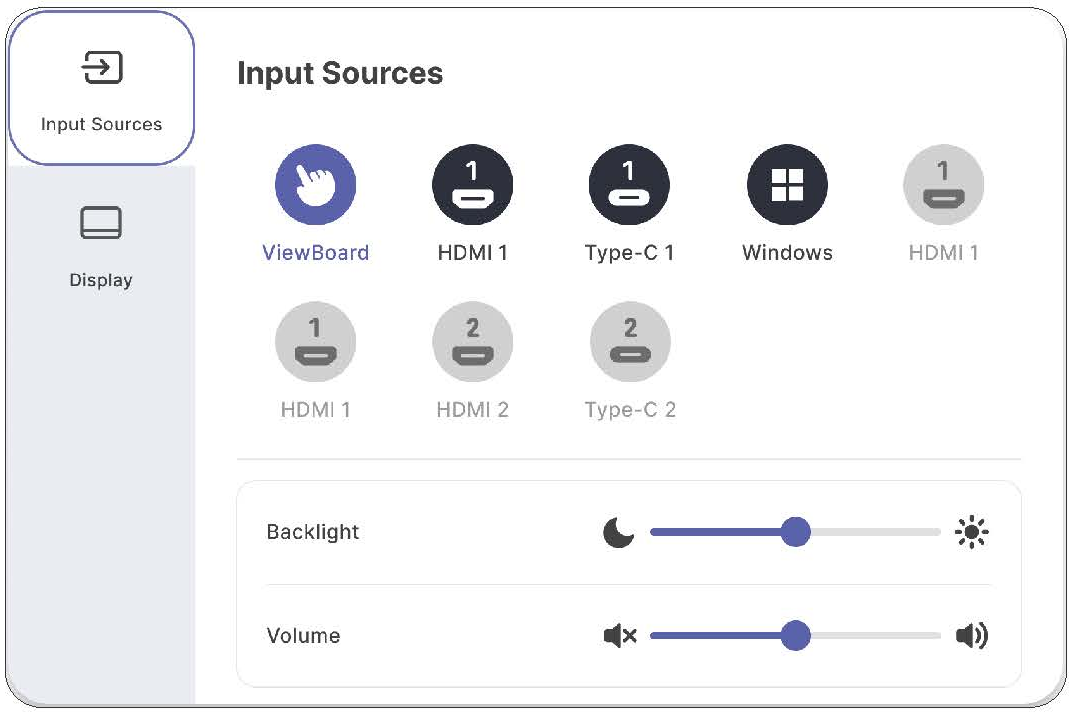

Input Source Icon
Press the Input Source button to open the list of available input sources and switch between connected devices, such as a desktop computer, laptop, document camera, or other display inputs.
