Using the ClickShare Button to Connect to a TV

    Using the ClickShare Button to Connect a Device to a TV


    To connect your device to a TV using the ClickShare Button, please follow these directions:

    1. Turn on the TV you would like to connect to.

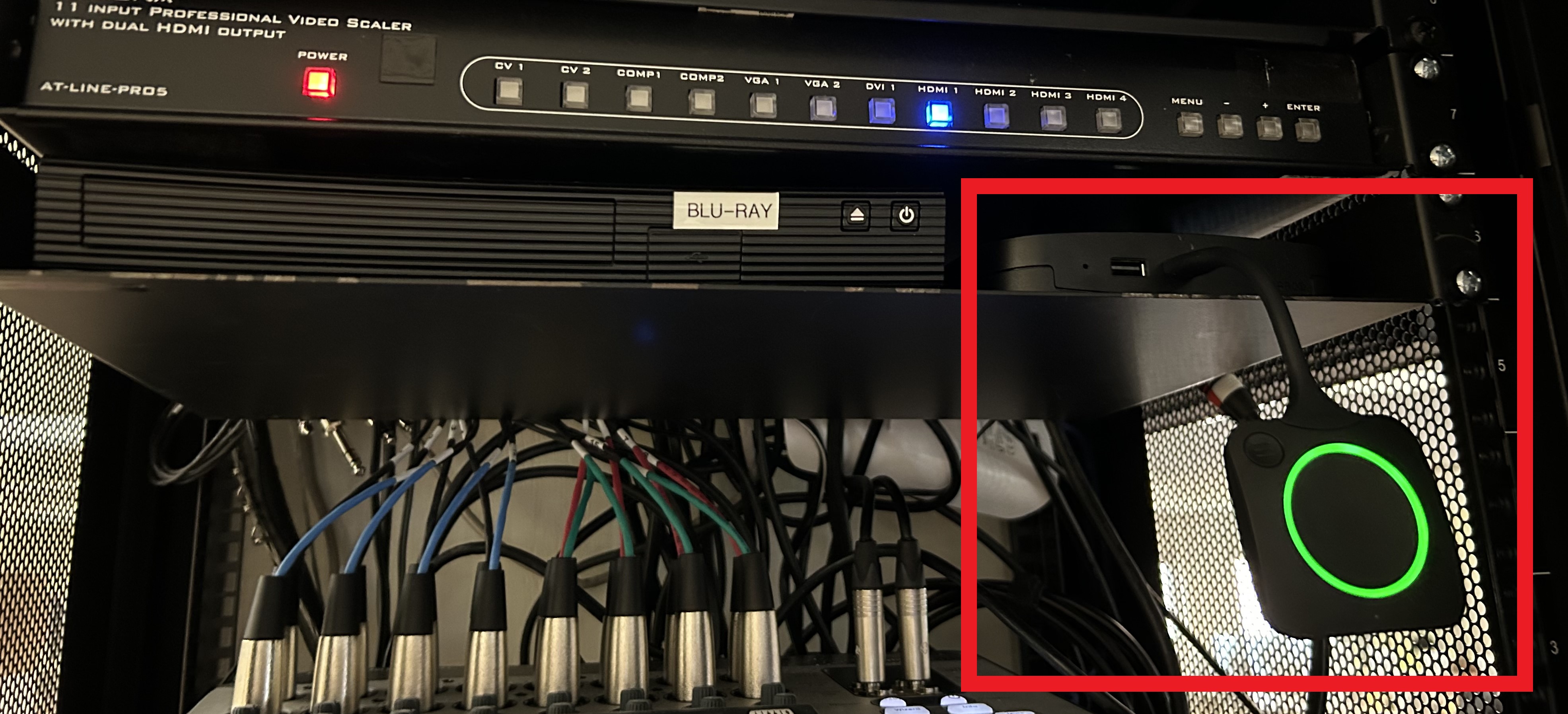

    2. Unplug the ClickShare Button from the charger. If in the GHS library, open the door to the black network storage cabinet hanging behind the TV and unplug the ClickShare Button from the ClickShare base unit.

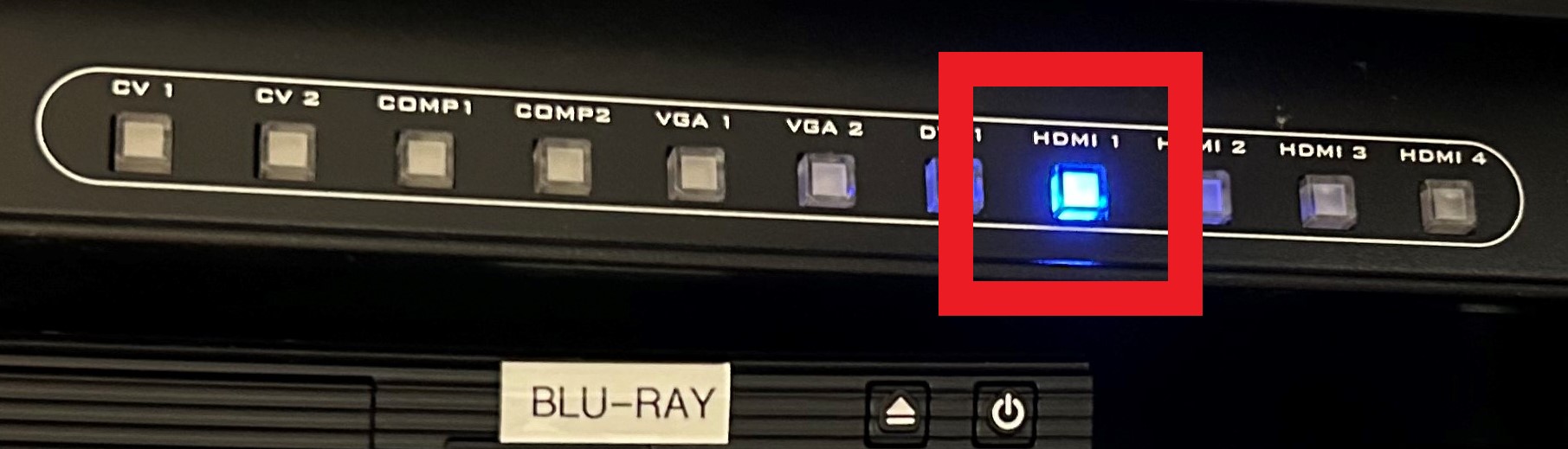

    3. If in the GHS library Be sure to change HDMI Output source to HDMI1. A blue light will indicate which source is selected.

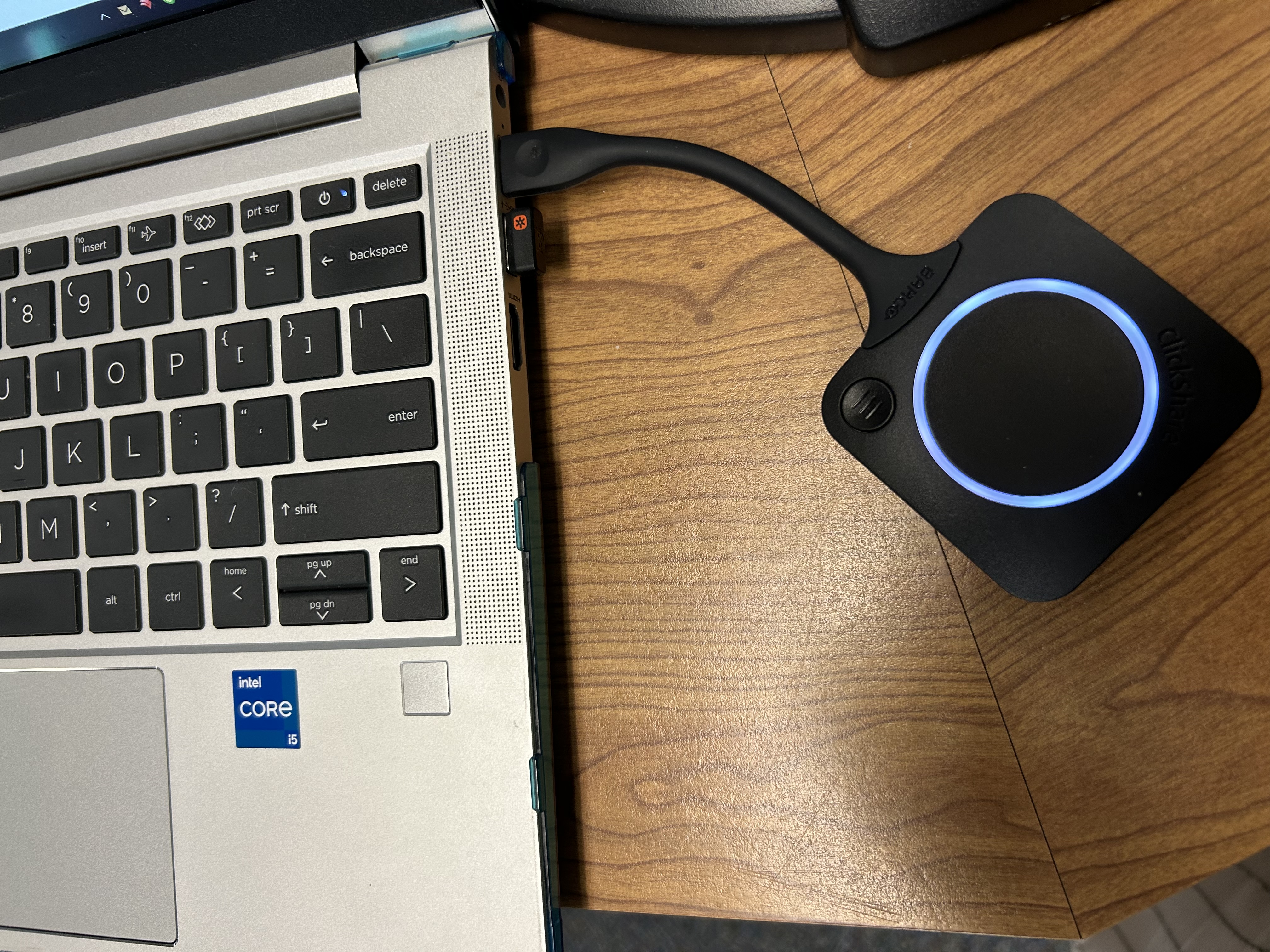

    4. Plug the ClickShare Button into your PC.

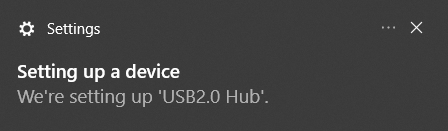

    It may display a message stating, "Setting up a device".

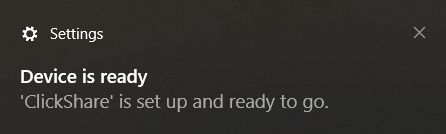

    Once set up, you will see another message stating, "The Device is ready".

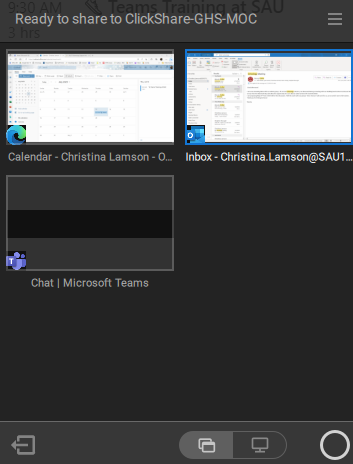

    5. Choose to share either a specific window by clicking on the '' icon or to share your entire screen by click on the '' icon.

    If you are sharing a specific window, you will be prompted to choose what window you would like to share.
    6. Click on the 'Circle' icon to begin sharing.

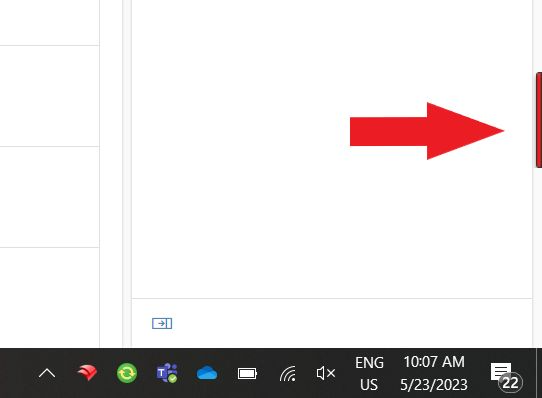

    You will now be sharing to the TV. On your PC screen you will notice a red line on the right-hand side. Hovering over the red line will give your your ClickShare menu.


    To Pause or Disconnect a Device from a TV Using the ClickShare Button

    To pause or disconnect a device sharing to a TV via the ClickShare Button, please follow these directions:

    1. Hover over the red line on the right-hand side of your screen.


    2. When the menu appears, click the 'Pause' icon to temporarily pause what you are sharing OR click the '' icon to stop sharing.

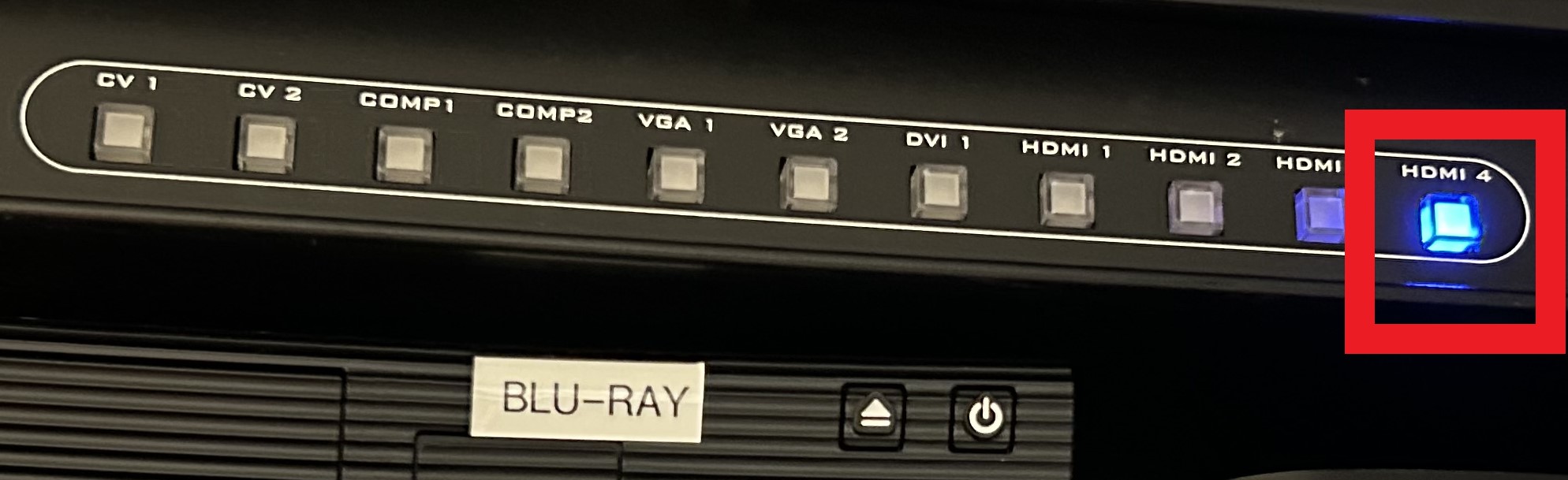

    3. Return the HDMI output source to HDMI4.  A blue light will indicate which source is selected.
    4. Plug the ClickShare Button back into the base unit.
